Aim & Intention
Concepts
The aim and intention of Jet II was to apply the knowledge gained from my placement at Red Bull to design a car using CAD software and to build it to the highest standard.

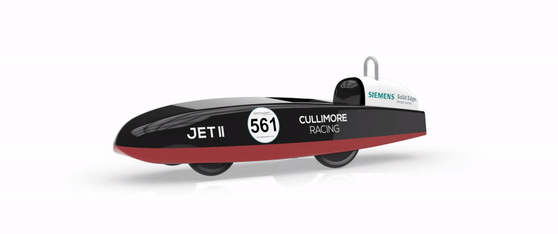

Jet II is a full carbon fibre monocoque construction. Not only is the construction stiff but with controlled use of materials, reduced weight by up to 40% when compared to Jet.
Holder of the all time Greenpower F24 and F24+ records and winner of every F24+ race in 2016. Despite new 2016 regulations designed to slow the cars, Jet II still managed to break many records.
Jet II
Racing Record
Statistics
Years competed: 2015 - 2016
Races entered: 14
Race wins: 12
Consecutive race wins: 11
Podiums: 14
Largest winning margin F24 (90min): 21m 44s
Largest winning margin F24+ (60min): 8m 52s
F24+ International Final Wins: 2016
F24+ Championships: 2016
Siemens
Solid Edge
Design & Development

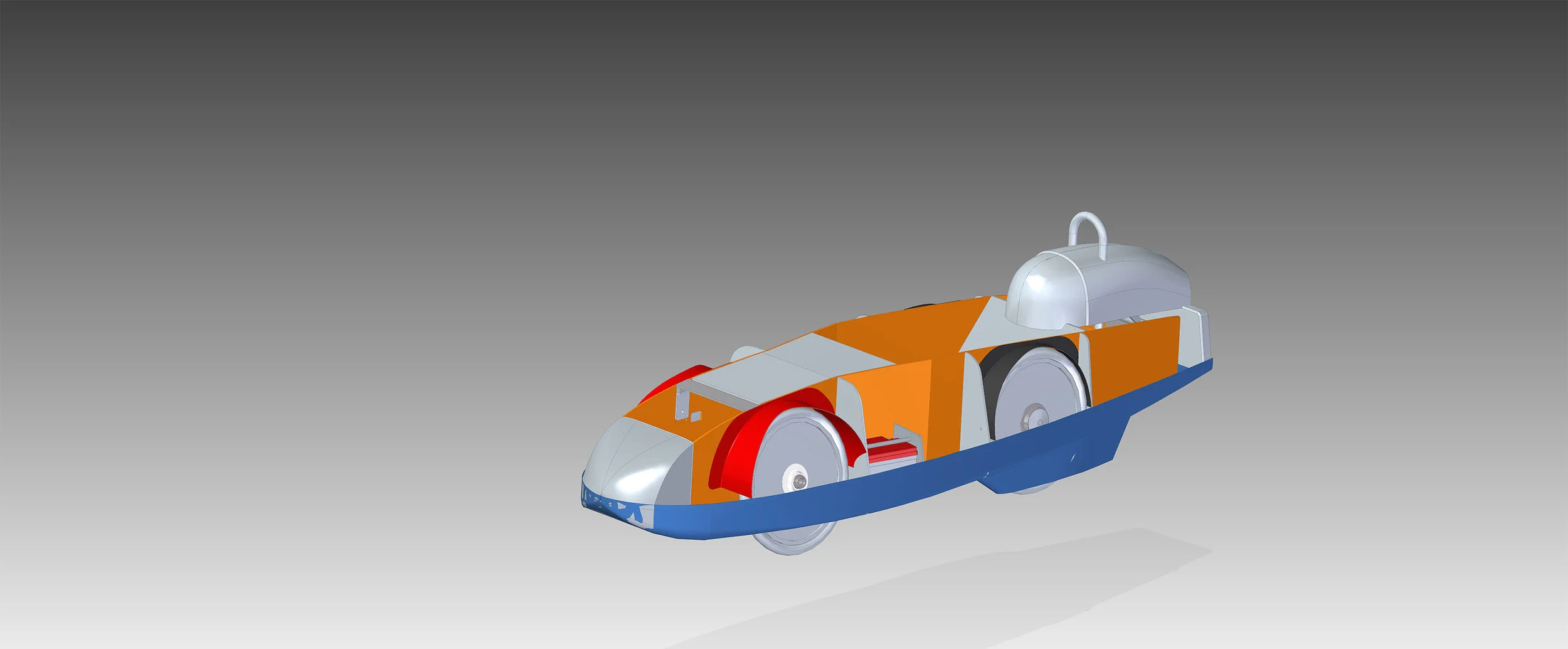

Jet II was designed within Siemens Solid Edge over the course of 8 months. During which time, the designs were refined with close to 100 different iterations. Limited amounts of CFD was also used to help refine the overall form.
The Solid Edge files were then used to build Jet II, from the machining of the tooling block patterns to the central bonding jig.
A top down modelling strategy was used to develop the components design within the organic body. This also included the design of jigs and tooling.
Winner of the Best Engineered Car 2015 & 2016 and the Siemens Design & Manufacturing award.
CaseStudy
Innovation
Composite applications
Cullimore Racing is always looking push the technical boundaries. An example of innovation applied in Jet II was the application of carbon fibre used in the construction of the wheels. Not only a new material but also new innovative processes and practices were developed. With 4 wheel braking and a composite driver cell, the design of Jet II strives to be above the minimum safety regulations.
Case Study
Innovation
3D Printed Composite Tooling

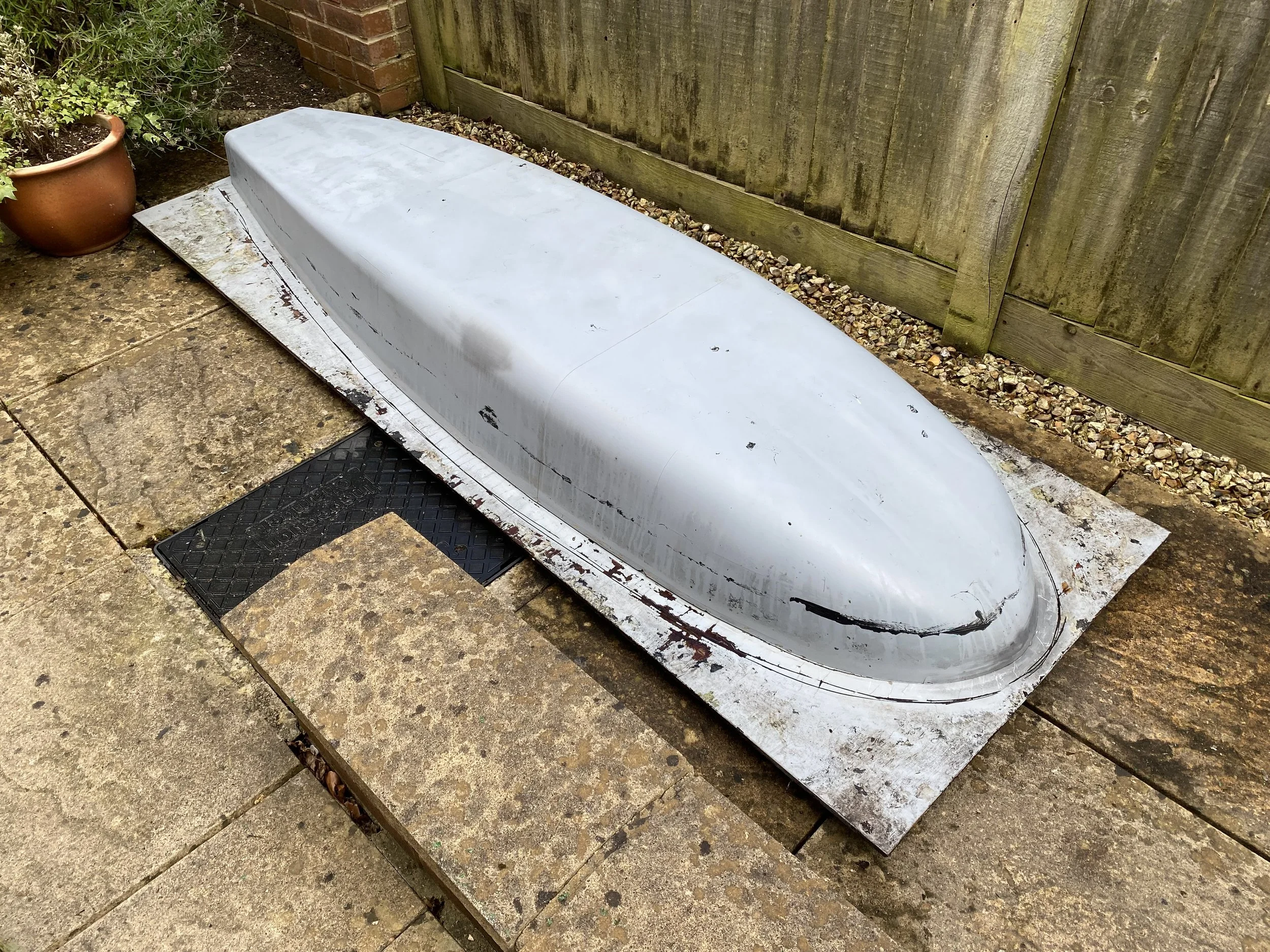

A relatively new consumer technology in 2015, a 3D printer was used to make tooling for composite parts. In this instance, wheel spats were moulded and then trimmed to shape.
Sections were printed individually and mounted to a board.
Wet layup carbon fibre being applied which was then vacuum bagged.
Results
| RESULTS 2016 | POSITION | DISTANCE | AVERAGE SPEED | FASTEST LAP | NOTES |
|---|---|---|---|---|---|
| SEASON OPENER ROCKINGHAM R1 | 1st / 40 | 51.5 | 33.3 MPH | 2.22 (37.3 MPH) | F24 FORMAT |
| SEASON OPENER ROCKINGHAM R2 | 1st / 33 | 51.5 | 33.5 MPH | 2.20 (37.7 MPH) | All TIME F24 DISTANCE AND LAP RECORD |
| GOODWOOD | 1st / 19 | 40.8 | 40.5 MPH | 3.26 (41.9 MPH) | |
| ROCKINGHAM | 1st / 18 | 42.6 | 42.1 MPH | 2.01 (43.6 MPH) | |
| CROFT | 1st / 16 | 33.3 | 33.0 MPH | 1.59 (34.8 MPH) | |
| BEDFORD | 1st / 17 | 29.7 | 30.3 MPH | 1.02 (32.5 MPH) | |
| DUNSFOLD | 1st / 18 | 33.5 | 33.4 MPH | 1.21 (34.6 MPH) | |
| AINTREE | 1st / 20 | 37 | 36.9 MPH | 2.25 (38.2 MPH) | |
| CASTLE COMBE | 1st / 19 | 40.7 | 39.0 MPH | 2.42 (41.1 MPH) | |
| INTERNATIONAL FINAL LAP RACE | 1st / 24 | 32.3 | 42.9 MPH | 2.00 (44.0 MPH) | |
| INTERNATIONAL FINAL | 1st / 37 | 41.2 | 40.1 MPH | 2.08 (41.4 MPH) | 4th INTERNATION FINAL WIN - ALSO WINNER OF EVERY 2016 F24+ RACES |
| F24+ CHAMPIONSHIP | 1st / 26 | 75 POINTS | MAXIMUM POINTS | WINNERS OF THE 2016 F24+ CHAMPIONSHIP |
| RESULTS 2015 | POSITION | DISTANCE | AVERAGE SPEED | FASTEST LAP | NOTES |
|---|---|---|---|---|---|
| CASTLE COMBE | 2nd / 18 | 38.9 | 37.8 MPH | 2.51 (39.1 MPH) | JET II FIRST RACE |
| LAP RACE | 1st / 23 | 36.8 | 40.2 MPH | 2.06 (42.1 MPH) | JET II FIRST WIN |
| F24+ INTERNATIONAL FINAL | 2nd / 40 | 39.7 | 39.3 MPH | 2.05 (42.3 MPH) |
